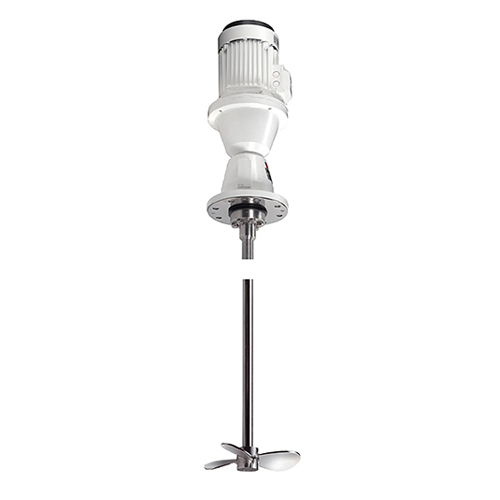

FMI Modular Vertical Agitator

  • Modular Vertical Agitator
The range of the FMI agitators presents vertical direct motor-driven agitators. They are used in the processes of mixing, dissolution, dispersion and maintenance, whenever a powerful and high-speed agitation is required, in the food-processing, cosmetics, pharmaceutical or chemical industries. The most adequate finish is selected for every process.
The agitators are normally fitted to tanks of up to 20.000 L for work with low-viscosity products.

Request information

FMI Modular Vertical Agitator

Operating principle

The agitators are normally installed inside the tank either centrally with current deflectors, or offset so that the offsetting itself prevents the rotation of the stirred product.
The rotation of the propeller makes the fluid flow to the bottom and then up to the surface along the walls of the tank. The effect is promoted if the bottom of the tank is curved.

Design and features

Vertical agitator.
Sealing: V-ring.
Bearing support.
Propeller attached to the shaft by Allen studbolts, and the shaft
attached to the drive by means of a rigid coupling plate.
IEC B5 motor, 1500 rpm, IP 55, F-class insulation.
Max. power 75 kW.
Marine propeller (Type 10).

Materials

Parts in contact with the product: AISI 316
V-ring: NBR
Lantern: Aluminium
Bearing support: GG-15
Surface finish: Ra ≤ 1,6 µm

Options

Double flushed mechanical seal.
Retainer: FPM.
Shaft and propeller lined with plastic material for use with corrosive products.
Welded propeller with Ra ≤ 0,4 µm and Ra ≤ 0,8 µm surface finish.
Sawtooth turbine (cowles).
Motor shroud.
Motors with other protections.
Motors: 950 or 750 rpm.

Documents

Data sheet (5)
Instruction manual (4)
Operating principle
The agitators are normally installed inside the tank either centrally with current deflectors, or offset so that the offsetting itself prevents the rotation of the stirred product.
The rotation of the propeller makes the fluid flow to the bottom and then up to the surface along the walls of the tank. The effect is promoted if the bottom of the tank is curved.
Materials and Options

Parts in contact with the product: AISI 316
V-ring: NBR
Lantern: Aluminium
Bearing support: GG-15
Surface finish: Ra ≤ 1,6 µm

Double flushed mechanical seal.
Retainer: FPM.
Shaft and propeller lined with plastic material for use with corrosive products.
Welded propeller with Ra ≤ 0,4 µm and Ra ≤ 0,8 µm surface finish.
Sawtooth turbine (cowles).
Motor shroud.
Motors with other protections.
Motors: 950 or 750 rpm.

Documents
Document № FT.FMI.1_ES.pdf
Title Agitador Vertical Modular FMI
File type .pdf
Summary La gama de la serie FMI son agitadores verticales con motor directo. Se pueden utilizar en procesos de mezcla, disolución, dispersión y mantenimiento, dónde se requiera una fuerte agitación a gran velocidad, en la industria alimentaria, cosmética y química, seleccionando el acabado adecuado en cada caso.
    Download
    • E-mail
Document № FT.FMI.1_EN.pdf
Title Modular Vertical Agitator FMI
File type .pdf
Summary The range of the FMI agitators presents vertical direct motor-driven agitators. They are used in the processes of mixing, dissolution, dispersion and maintenance, whenever a powerful and high-speed agitation is required, in the food-processing, cosmetics, pharmaceutical or chemical industries. The most adequate finish is selected for every process.
    Download
    • E-mail
Document № FT.FMI.1_DE
Title Modulares Vertikalrührwerk FMI
File type .pdf
Summary Modulare Rührwerke FMI kommen in Behältern mit einem Fassungsvermögen von bis zu 20.000 Litern sowie allgemein bei Produkten mit geringer Viskosität zum Einsatz
    Download
    • E-mail
Document № FT.FMI.1_IT.pdf
Title Agitatore Verticale Modulare FMI
File type .pdf
Summary La gamma di agitatori FMI è costituita da agitatori verticali con motore diretto. Si possono utilizzare sia nei processi di miscelazione, dissoluzione, dispersione e mantenimento sia nell'industria alimentare che cosmetica, farmaceutica e chimica, selezionando la finitura superficiale adeguata per ogni applicazione e settore, dove è necessario agitare con forza ed a grande velocità.
    Download
    • E-mail
Document № FT.FMI.1_RU.pdf
Title Модульная Вертикальная Мешалка FMI
File type .pdf
Summary Модель FMI представляет собой среднескоростную вертикальную мешалку с приводом непосредственно от электродвигателя, предназначенную для процессов перемешивания, диспергирования и рециркуляции.
    Download
    • E-mail
Document № 20.007.30.00ES
Title INSTRUCCIONES DE INSTALACION, SERVICIO Y MANTENIMIENTO AGITADOR VERTICAL FMI
File type .pdf
    Download
    • E-mail
Document № 20.007.30.00EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS FMI VERTICAL AGITATOR
File type .pdf
    Download
    • E-mail
Document № 20.007.30.00FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN AGITATEUR VERTICAL FMI
File type .pdf
    Download
    • E-mail
Document № 20.007.30.00PT
Title INSTRUÇÕES DE INSTALAÇÃO, FUNCIONAMENTO E MANUTENÇÃO AGITADOR VERTICAL FMI
File type .pdf
    Download
    • E-mail
