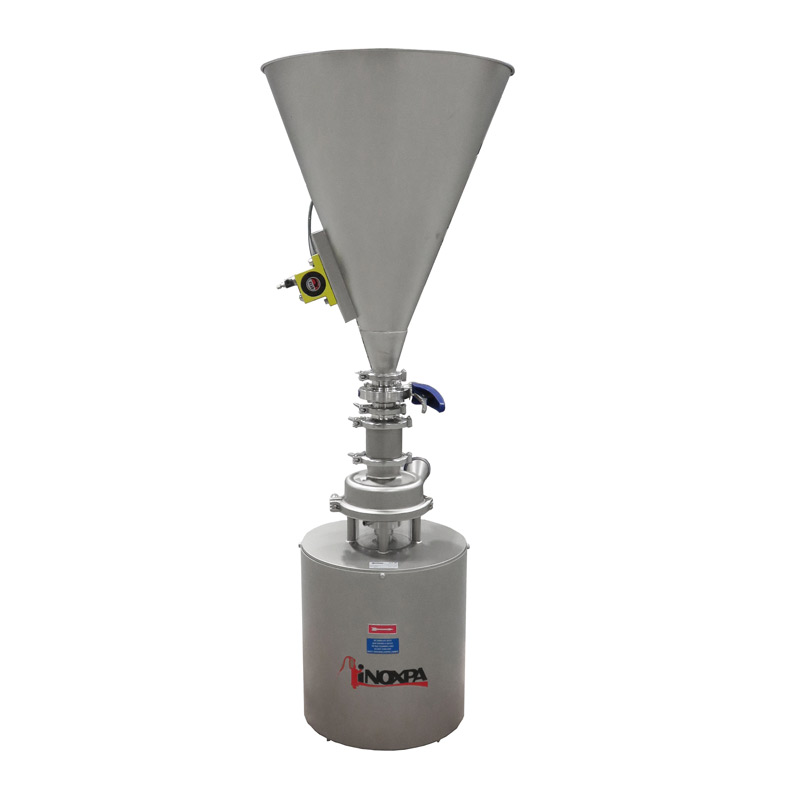

M-226 / M-440 Blender

  • Blender
  • Blender
  • Blender
  • Blender

The blenders are used to mix solids in liquids.
In the food-processing industry, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc.
They can also be used for preparing solid-liquid mixtures in the pharmaceutical, cosmetics and chemical industries.

Request information

M-226 / M-440 Blender

Operating principle

The blender basically consists of a casing and a centrifugal pump impeller which are mounted vertically. The suction side has a double-wall pipe that keeps the inlet of solids separate from that of liquids, thus avoiding the formation of lumps before the material enters the casing.
The liquid enters the mixing chamber at a high speed, thereby creating a vacuum at the center of the impeller, which causes the suction of the solids. The introduction of solids can be regulated by means of a valve situated at the bottom of the hopper.

Design and features

Simple and versatile assembly for quick and homogeneous mixing of a great variety of solids without contact with the atmosphere.
Complete mixing with recirculation of the material.
In some applications, it can be used in line, without recirculation.
Sanitary design.
Easy assembly and disassembly by Clamp connections.
Cleaning can be carried out without disassembling the unit.
Sanitary single mechanical seal.
Standard hopper of 40º for M-226 and 50º for M-440.

Materials

Parts in contact with the product AISI 316L
Gaskets EPDM

Mechanical seal:
Rotary part Carbon (C)
Stationary part Stainless steel (St.St.)
Gaskets EPDM

Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt

Options

Double flushed seal.
Double pressurised seal.
Connections: DIN, SMS.
Vibrator for the hopper.
Pneumatically actuated valve + hygienic solids lower level sensor.
Hygienic solids upper level sensor.
Control panel for vibrator, solids level sensors, frequency converter, automated valve.
Grid for the hopper.
60º hopper.
Drainage.
ATEX version available.
Internal surface finish: Ra ≤ 0.5 μm.

Documents

Data sheet (6)
Instruction manual (7)
Operating principle

The blender basically consists of a casing and a centrifugal pump impeller which are mounted vertically. The suction side has a double-wall pipe that keeps the inlet of solids separate from that of liquids, thus avoiding the formation of lumps before the material enters the casing.
The liquid enters the mixing chamber at a high speed, thereby creating a vacuum at the center of the impeller, which causes the suction of the solids. The introduction of solids can be regulated by means of a valve situated at the bottom of the hopper.

Materials and Options

Parts in contact with the product AISI 316L
Gaskets EPDM

Mechanical seal:
Rotary part Carbon (C)
Stationary part Stainless steel (St.St.)
Gaskets EPDM

Surface finish:
Internal Bright polish Ra ≤ 0,8 μm
External Matt

Double flushed seal.
Double pressurised seal.
Connections: DIN, SMS.
Vibrator for the hopper.
Pneumatically actuated valve + hygienic solids lower level sensor.
Hygienic solids upper level sensor.
Control panel for vibrator, solids level sensors, frequency converter, automated valve.
Grid for the hopper.
60º hopper.
Drainage.
ATEX version available.
Internal surface finish: Ra ≤ 0.5 μm.

Documents
Document № FT.M226_M440.3_ES
Title Mezcladores M-226 / M-440
File type .pdf
Summary La gama de Mezcladores se utilizan para la mezcla de sólidos en líquidos.
    Download
    • E-mail
Document № FT.M226_M440.3_EN
Title Blenders M-226 / M-440
File type .pdf
Summary Powder blenders are used to mix solids in liquids. In the food-processing industry, they provide a perfect solution for reconstituting powdered milk, making syrups, preparing brines, etc.
    Download
    • E-mail
Document № FT.M226_M440.3_FR
Title Incorporateurs M-226 / M-440
File type .pdf
Summary Les incorporateurs sont utilisés afin de mélanger des poudres dans des liquides.
    Download
    • E-mail
Document № FT.M226_M440.3_IT
Title Dissolutori Triblender M-226 / M-440
File type .pdf
Summary La gamma dei Dissolutori Triblender si utilizza per la dissoluzione di solidi nei liquidi.
    Download
    • E-mail
Document № FT.M226_M440.3_PT
Title Misturadoras M-226 M-440
File type .pdf
Summary A gama de Misturadoras é usada para misturar sólidos em líquidos
    Download
    • E-mail
Document № FT.M226_M440.3_RU
Title БЛЕНДЕР M-226 / M-440
File type .pdf
Summary Блендеры предназначены для однородного смешивания порошкообразных продуктов с жидкостями.
    Download
    • E-mail
Document № 02.002.30.02ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO MEZCLADOR 226 / 440
File type .pdf
    Download
    • E-mail
Document № 02.002.30.01ES
Title INSTRUCCIONES DE INSTALACIÓN, SERVICIO Y MANTENIMIENTO MEZCLADOR 226 - ANEXO ATEX
File type .pdf
    Download
    • E-mail
Document № 02.002.30.02EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS BLENDER 226 / 440
File type .pdf
    Download
    • E-mail
Document № 02.002.30.01EN
Title INSTALLATION, SERVICE AND MAINTENANCE INSTRUCTIONS BLENDER 226 - ANNEX ATEX
File type .pdf
    Download
    • E-mail
Document № 02.002.30.02FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN MÉLANGEUR 226 / 440
File type .pdf
    Download
    • E-mail
Document № 02.002.30.01FR
Title INSTRUCTIONS D’INSTALLATION, DE SERVICE ET D’ENTRETIEN MÉLANGEUR 226 - ANNEXE ATEX
File type .pdf
    Download
    • E-mail
Document № 02.002.30.02RU
Title ИНСТРУКЦИИ ПО УСТАНОВКЕ, ЭКСПЛУАТАЦИИ И ОБСЛУЖИВАНИЮ БЛЕНДЕР 226 / 440
File type .pdf
    Download
    • E-mail
